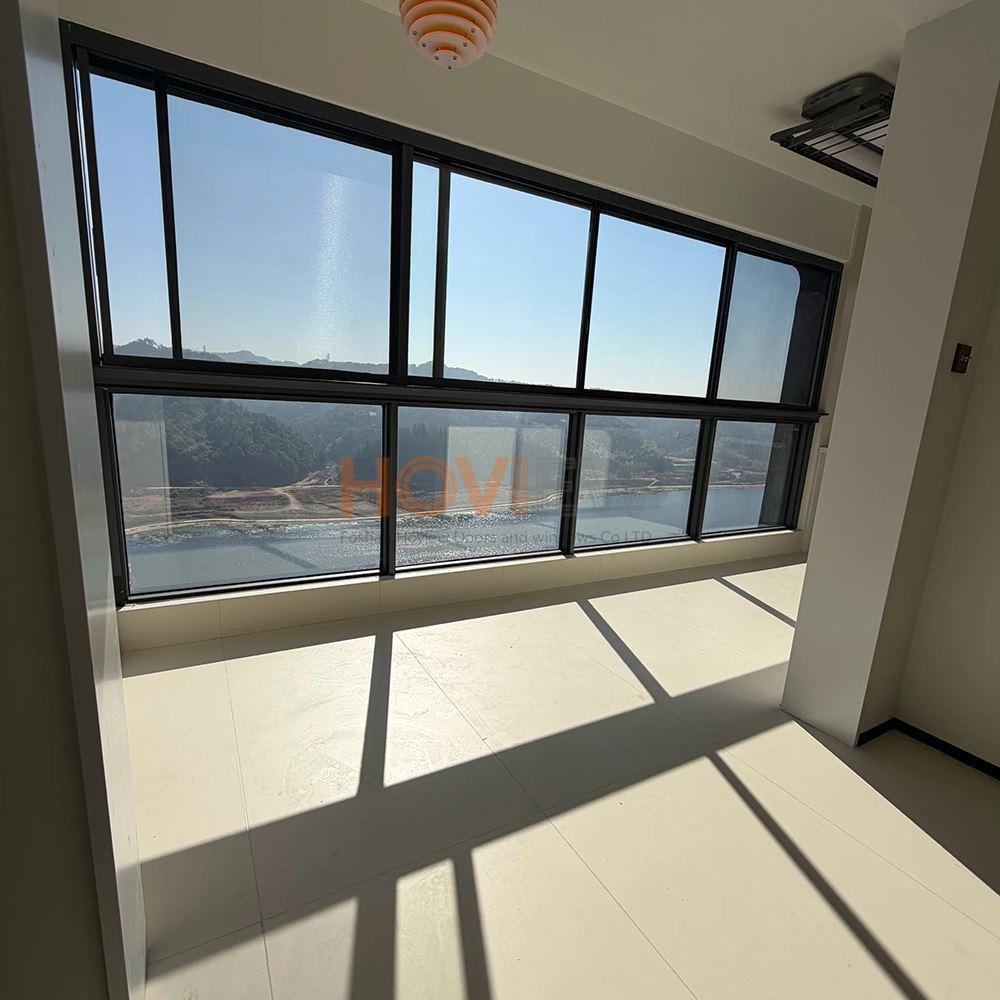

High Performance Sliding Window

❶Standard-Gauge Rigid Aluminum Extrusions

This sliding window series applies 1.8mm wall thickness 6063-T5 virgin aluminum profiles that strictly comply with national industry specifications. The raw material boasts intrinsic hardness and tensile tenacity, equipped with powerful anti-corrosion and anti-distortion attributes to cope with long-term outdoor weathering. The whole frame structure is engineered to lock stable sash sliding posture, bear large glass weights steadily and extend the overall service cycle of the window assembly.

❷Windproof Anti-Tilt Limit Roller Assembly

Custom anti-tilting sliding wheel sets are preinstalled on movable sashes, which constrain lateral shaking and positional deviation of the sliding fan. Even under powerful cross wind impact, the sash cannot swing or derail during push-pull movement, being firmly locked on the track. This mechanical limit design greatly elevates the safety coefficient and airtight sealing performance of horizontal sliding windows.

❸Inert Gas Sealed Double Insulated Tempered Glass

The default glazing configuration is 5mm+15A+5mm double-layer hollow tempered glass with official 3C safety certification, and the interlayer cavity is filled with inert shielding gas. It forms a dual isolation barrier to weaken external noise transmission and cut off bidirectional heat conduction between indoor and outdoor environments, creating a quiet and temperature-stable living space indoors.

❹Multi-Layer Dust-Proof Wool Pile Sealing Structure

High-density woven wool pile sealing strips are laid at every overlapping gap between fixed frame and movable sash. These elastic pile strips fill tiny assembly clearances to block flying dust, winged insects and cross-air infiltration. Meanwhile, they lower frictional resistance during frequent push-pull operation, reducing sliding noise and upgrading basic sealing effects.

❺Reinforced Silent Load-Bearing Slide Tracks

The bottom sliding guide rail adopts widened and thickened bearing track molding, which evenly disperses the heavy weight of glass sashes to avoid local track bending or permanent deformation under long-term pressure. Matched with mute smooth rollers, the window slides with ultra-low noise and effortless hand feeling; wear-resistant structural design guarantees smooth operation after years of frequent opening and closing.

❻National Standard PA66GF25 Thermal Break Isolation Strips

Formal standard polyamide thermal break strips are embedded into the profile cross-section, completely disconnecting the heat conduction cold bridge of the aluminum frame itself. It hinders outdoor high temperature or low temperature from transferring into the room through metal frame, cuts down power consumption of household air conditioning and heating equipment, and realizes obvious energy-saving effects.

❼Pre-Embedded Integrated Clothes Hanging Bracket Reserve

Reserved pre-punch slots are reserved on the outer frame without the need for destructive drilling and secondary construction on finished windows. Specially matched clothes hanging racks can be directly mounted onto the reserved structure, enabling clothes airing while the window is slightly opened for ventilation. This multi-functional design effectively saves balcony usable area and optimizes space utilization.

❽Full-Cavity Injection Corner Reinforcement Splicing Craft

All frame corner joints adopt full glue injection filling splicing technology. Structural adhesive fully fills all hollow cavities inside aluminum profile corners after curing, integrating split frame materials into an integrated rigid body. It enhances corner joint rigidity and overall structural strength, prevents cracking and loosening at splicing positions, and fundamentally eliminates hidden rainwater leakage risks from frame seams.

❾Built-In Concealed Gravity Drainage Channel System

Drainage passages are hidden inside the profile cavity without exposed holes to maintain neat and unified exterior facade appearance. The drainage outlets are widened to accelerate rainwater outflow speed inside the frame, effectively preventing rainwater backflow and water accumulation inside the window frame even during heavy downpour and storm weather.

❿Complete Set of Special Brand Sliding Hardware Kits

Whole window is equipped with a complete set of brand exclusive sliding transmission and locking hardware tailored for horizontal sliding structures. All metal hardware undergoes anti-oxidation and rust-proof surface treatment, delivering stable locking function and silky push-pull sliding experience. It maintains consistent smooth operation and outstanding anti-aging durability under long-term frequent use.
