Foshan Hoview Windows and Doors Co., Ltd. is one of the leading manufacturers and suppliers of aluminium sunroom in China, also accepts customized orders. If you're going to buy durable aluminium sunroom made in China, welcome to get quotation from our factory. For price consultation, contact us.
Product Details
Click on the corresponding title to expand the details.
- Basic Structure & Materials
- Professional Drainage System
- Optional Intelligent Functions
- Various Shapes & Application Scenarios

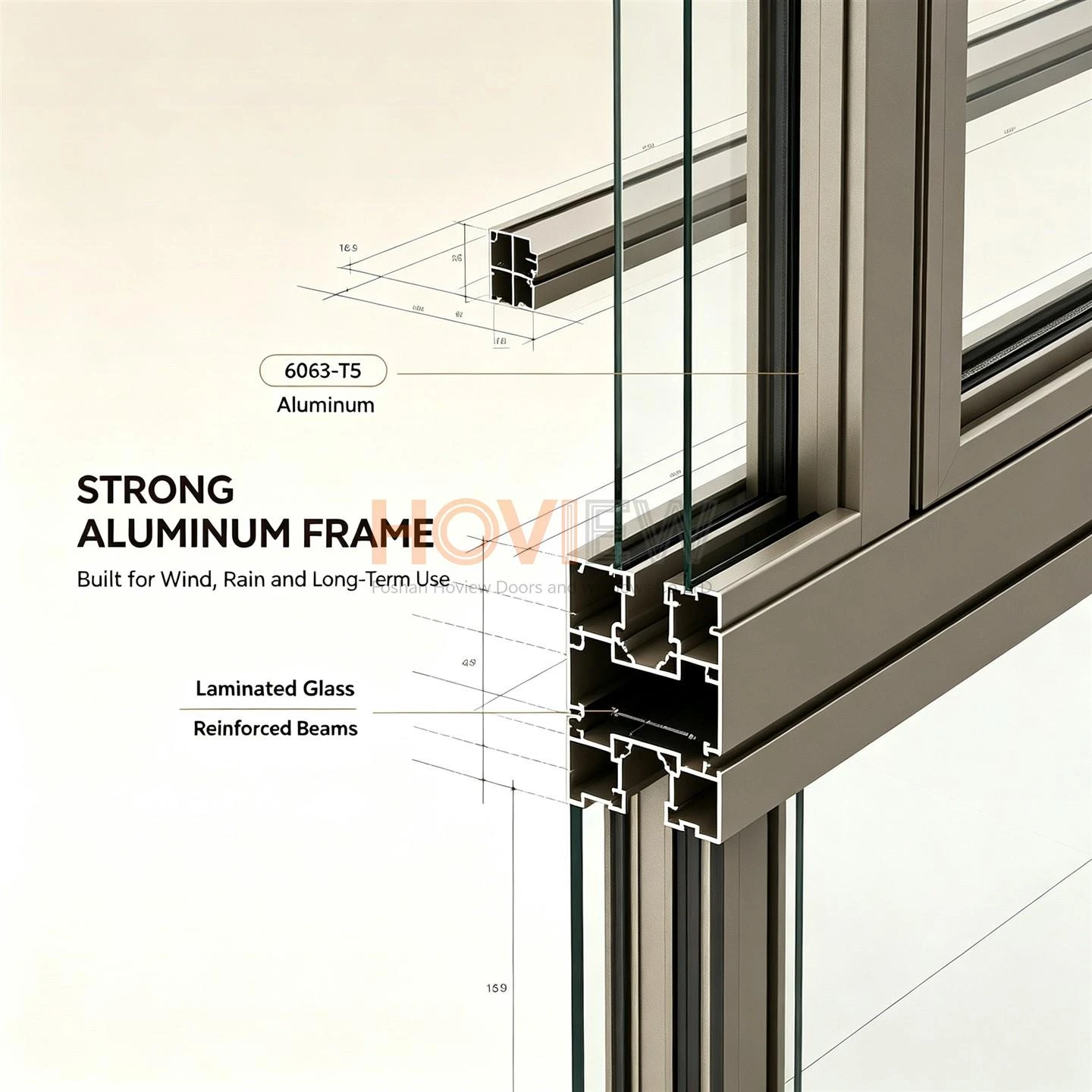

1.Virgin Aluminum Frame Construction
The whole sunroom frame adopts 6063-T5 virgin extruded aluminum. Two wall thickness options: 2.5mm & 3.0mm. It delivers excellent anti-rust, anti-oxidation and wind resistance, no deformation under long outdoor exposure.
2.Laminated Safety Glass
Standard 5+1.14PVB+5 laminated tempered glass. The PVB film blocks over 90% UV rays and insulates noise. Broken glass sticks together without splashing. Low-E insulated glass is optional for stronger heat insulation.
3.Reinforced Beam & Column Design
Thickened square support columns support large-span layout. Main beams can be inserted with 10mm steel plates to enhance bending resistance, solving the load-bearing risk of large-area roof for villas and commercial spaces.
4.Concealed Corner Joint Craft
CNC integrated corner connectors are used for frame assembly. All fixing screws are hidden inside profiles with no exposed fasteners outside. Seamless lap reduces glue usage, easier installation and higher appearance.

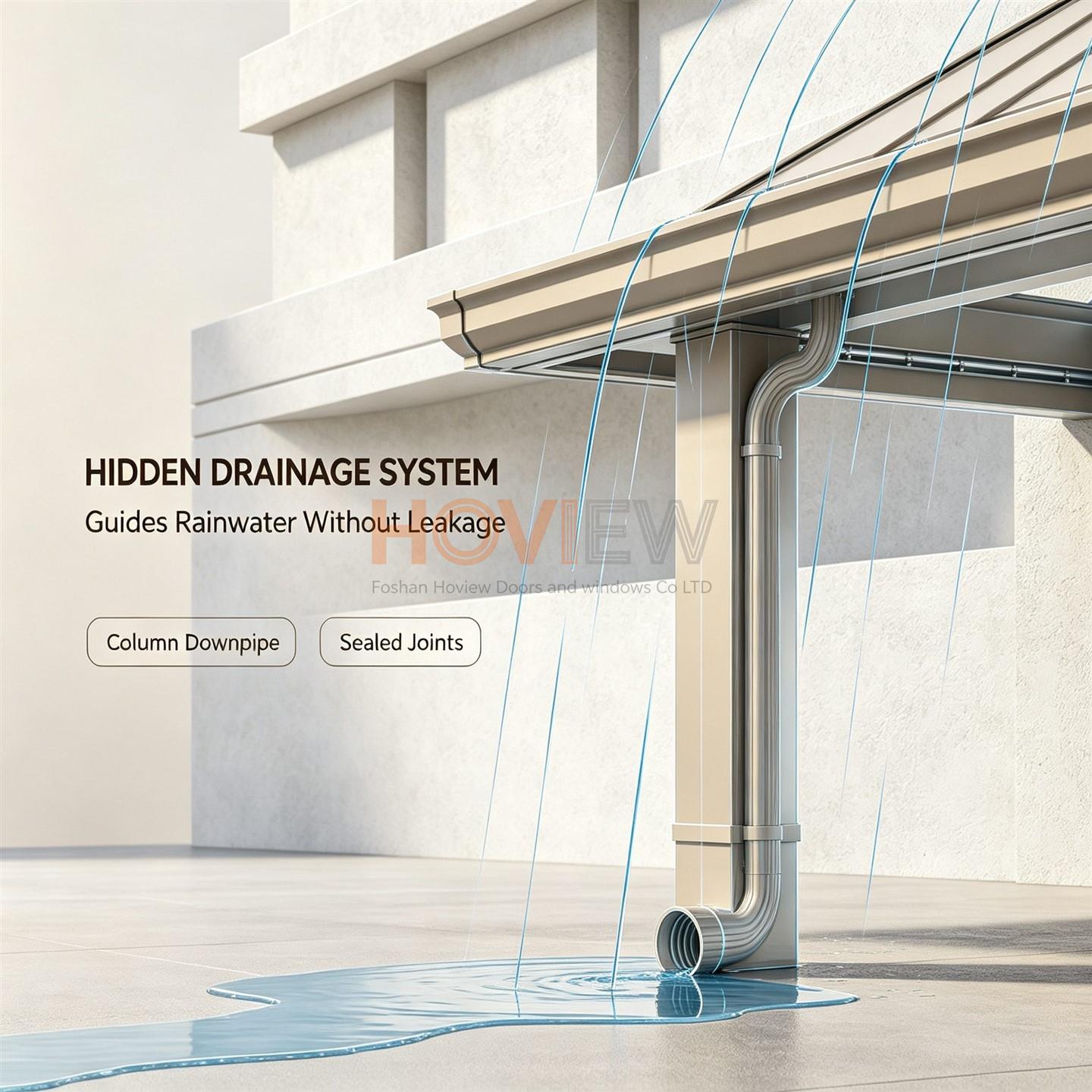

1.Heightened Integrated Gutter
Heightened and widened aluminum gutter expands rainwater capacity to prevent overflow in heavy rain. Outer baffle stops rain splashing and ice shedding in winter.
2.Built-in Hidden Top Channels
All top horizontal rails come with independent hidden drainage channels. Rainwater flows along preset paths instead of seeping into assembly gaps to avoid roof leakage fundamentally.
3.Central Downpipe at Column Base
Each support column matches a vertical downpipe. All rainwater from gutters converges and drains at column bottoms, keeping surrounding ground dry without water accumulation.
4.Tenon Mortise Sealed Splicing
Hidden screw hole design, no exposed metal fasteners after installation. Complete matching connectors, elbows and wall brackets for one-stop supply. Outdoor profiles reserve independent drainage channels to prevent rainwater retention.
1.Pre-reserved LED Light Grooves
Light slots are pre-set on main beams, auxiliary beams and columns. All wires are hidden inside frames. No suspended lamps needed to save indoor vertical space and create soft night atmosphere.

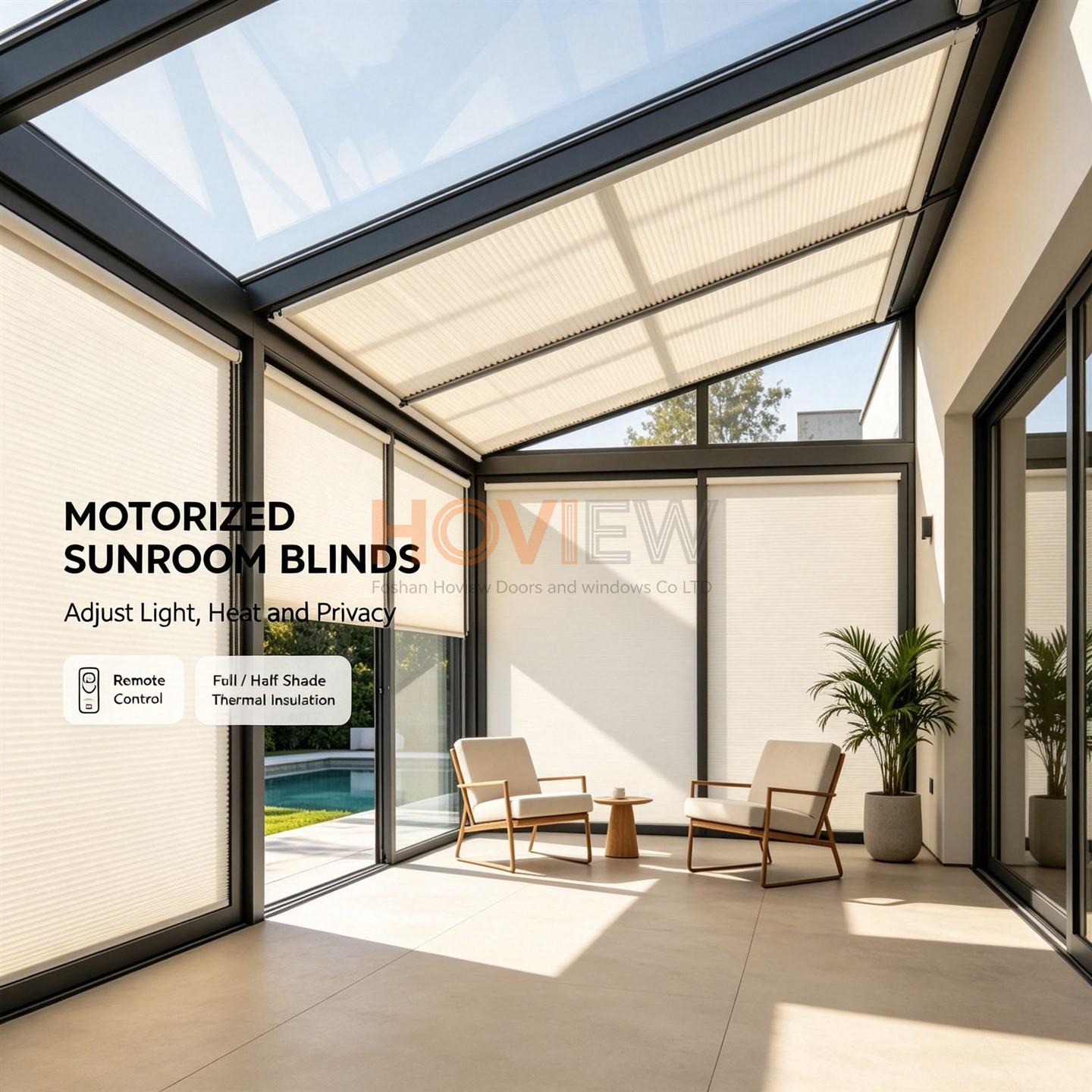

2.Motorized Heat Insulation Blinds
Honeycomb blinds & magnetic shutters are optional. Hollow honeycomb structure stabilizes indoor temperature with 8-10℃ temperature difference. Light transmittance can be adjusted freely between full shade and full light.
3.Remote Controlled Electric Skylight
Dual control by remote & hand operation. It exhausts hot air in summer and brings soft fresh air in winter. It is convenient for top glass cleaning and night star watching.

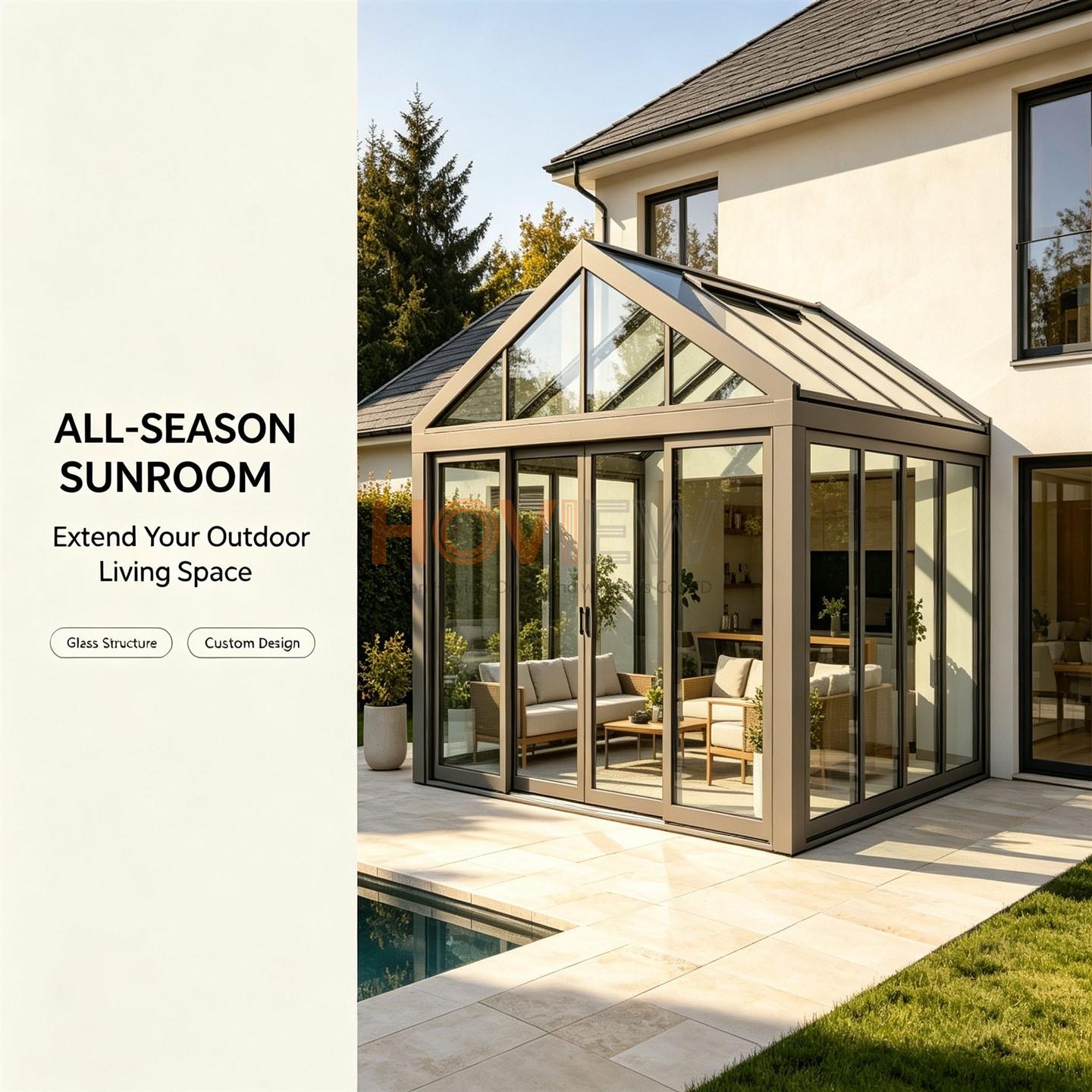

1. Multiple Customizable Roof Shapes
Optional roof types: gable roof, slant roof, diamond roof, curved arc roof. Matches modern, European and new Chinese building styles, customizable according to house facade.
2. Private Villa Courtyard Space
Large-span sunrooms built in private courtyards work as tea rooms, reception areas and home gyms, expanding usable living space and creating independent quiet outdoor leisure zones.
3. High-rise Balcony Renovation
Compact sunrooms transform idle high-rise balconies into reading rooms, greenhouses and lounge areas, raising space utilization and providing panoramic viewing vision.
4. Commercial Outdoor Venues

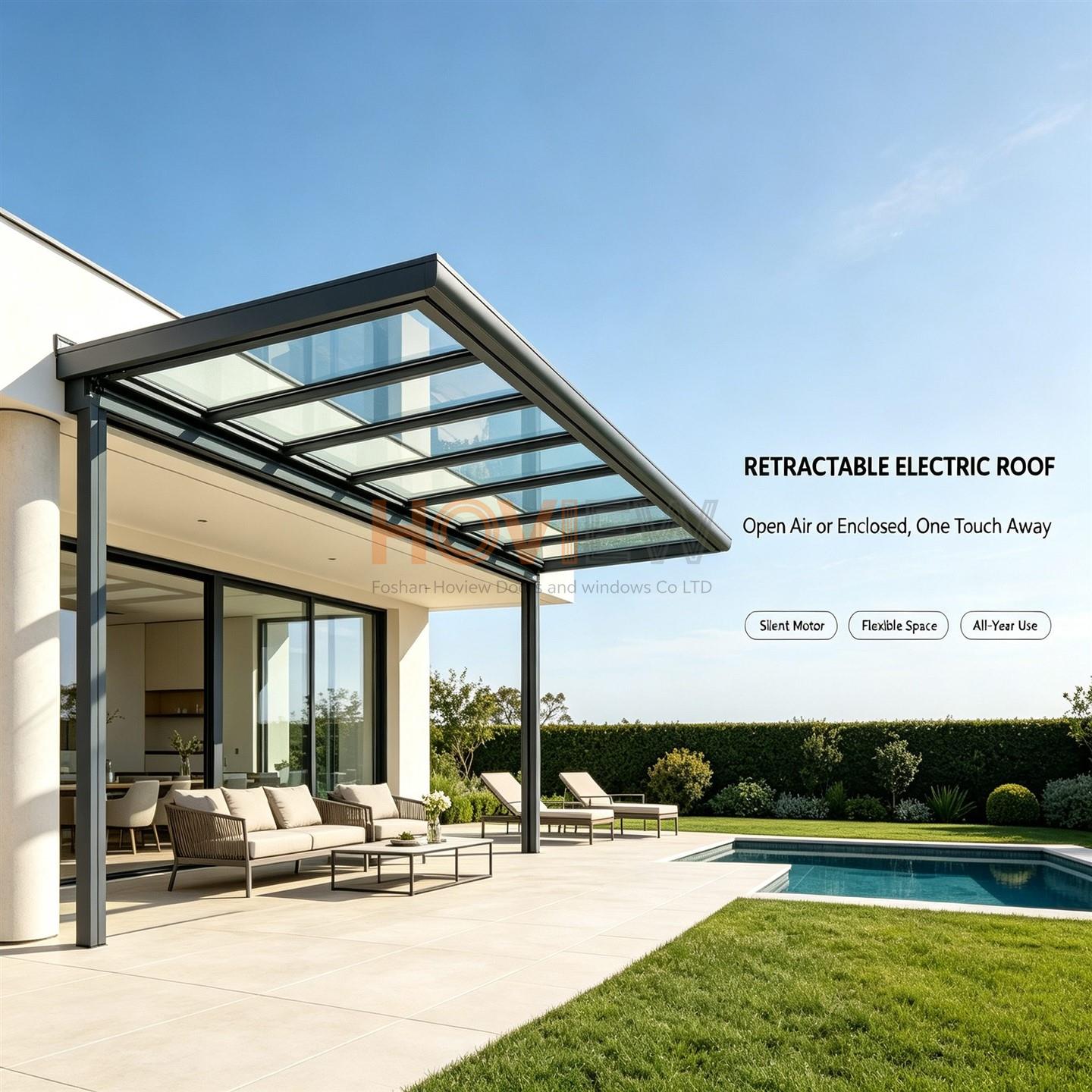

Widely applied to restaurant outdoor areas, swimming pool enclosures, hotel terraces and club lounges. Retractable roof supports all-year operation without loss caused by rainy or cold weather.
