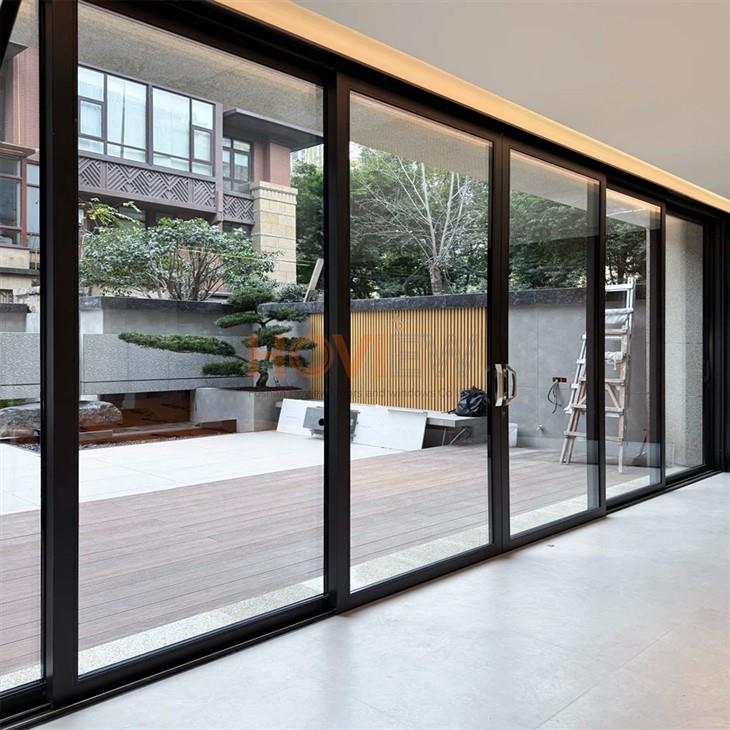

Multi Track Sliding Door

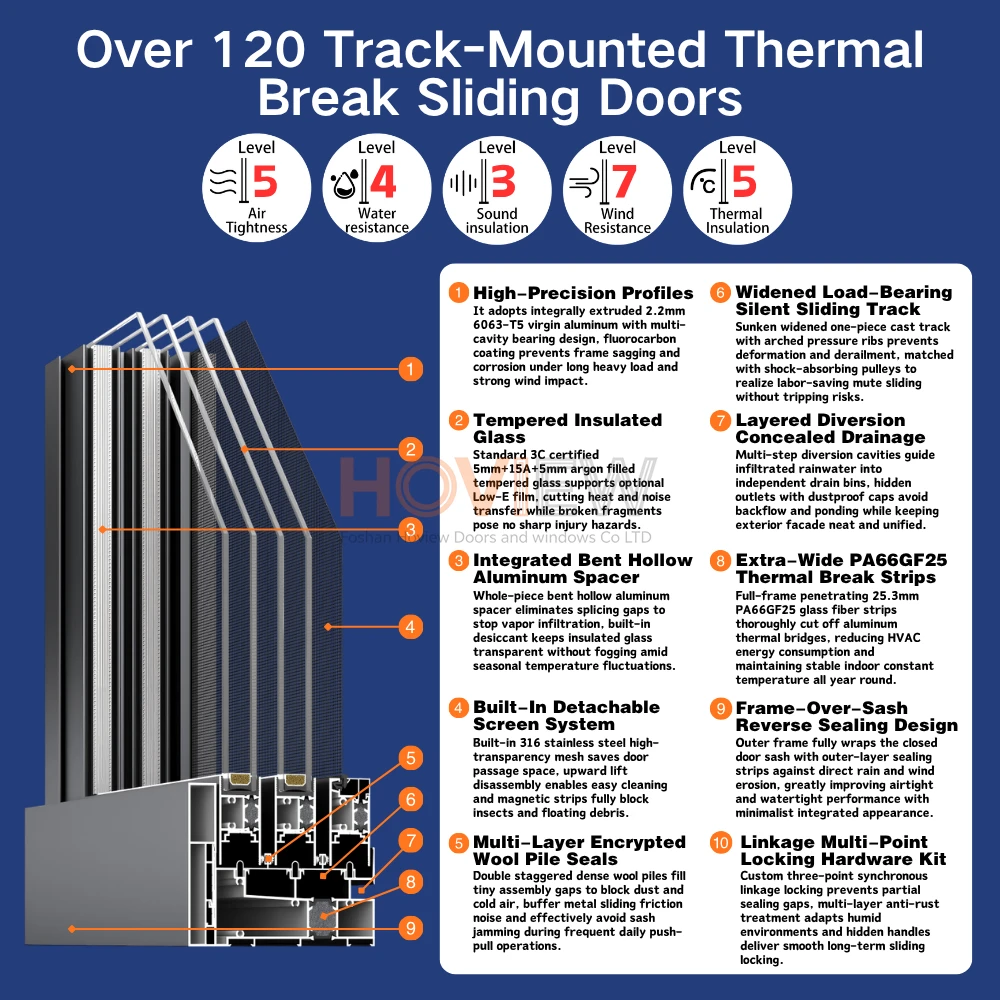

❶High-Precision Profiles

Extruded integrally from industrial 6063-T5 virgin aluminum ingots with extra 2.2mm wall thickness and staggered multi-cavity structure for long-span heavy load. Weather-resistant fluorocarbon coating prevents coastal salt fog and UV aging. The door panel resists sagging and distortion under long-term push-pull weight, offering far better structural stability against high-rise wind pressure than standard sliding doors.

❷Tempered Insulated Glass

Standard 5mm+15A+5mm 3C certified insulated tempered glass filled with argon gas to weaken noise and heat exchange. Optional single/double silver Low-E coating blocks outdoor heat in summer and retains indoor warmth in winter. All glass edges are finely rounded, breaking into blunt particles upon impact to eliminate injury risks for large-size door panels.

❸Integrated Bent Hollow Aluminum Spacer

Numerically controlled one-piece bent aluminum spacer replaces segmented splicing design with zero gaps to block vapor infiltration. The built-in sealed cavity holds desiccant and matches glass thermal expansion ratio perfectly, avoiding glue peeling and inner glass fogging for a far longer service cycle of insulated glazing unit.

❹Built-In Detachable Screen System

Concealed screen compartment inside the frame saves door passage space, with high-density 316 stainless steel mesh resisting puncture while preserving daylight. Tool-free upward lift enables easy disassembly for washing. Side magnetic strips seal gaps tightly to stop mosquitoes and catkins from entering the room through sliding seams.

❺Multi-Layer Encrypted Wool Pile Seals

Double staggered dense wool piles with film-reinforced roots resist shedding and wear 3 times longer than ordinary single-row strips. Interlaced piles fill assembly gaps to block dust and cold air, buffer metal friction during sliding, eliminate jamming and lower operation noise effectively.

❻Widened Load-Bearing Silent Sliding Track

Sunken widened one-piece cast bottom track with arched ribs disperses door weight to prevent depression and derailment. Wear-resistant nylon grooves and shock-absorbing pulleys deliver silent and smooth sliding without harsh friction noise. Built-in diversion grooves avoid tripping hazards while maintaining load-bearing durability for daily passage.

❼Layered Diversion Concealed Drainage

Multi-step vertical diversion cavities guide infiltrated rainwater into independent water collecting bins to prevent hardware corrosion. Hidden drain outlets with insect-proof caps keep facade minimalist without exposed holes. Hydrophobic inner lining avoids sludge clogging and ensures rapid drainage to stop backflow during heavy rainfall.

❽Extra-Wide PA66GF25 Thermal Break Strips

Full-frame 25.3mm extra-wide PA66GF25 glass fiber reinforced strips resist high-temperature creep and low-temperature cracking. The oversized cross-section completely cuts aluminum thermal bridges. Combined with frame-over-sash sealing, it blocks outdoor heat and cold penetration to lower HVAC power consumption and stabilize indoor temperature all year round.

❾Frame-Over-Sash Reverse Sealing Design

Different from conventional sash-wraps-frame sliding doors, this frame-over-sash design embeds the entire door panel into frame grooves when closed. Sealing strips wrap gaps from outer side to avoid direct rain and wind impact. It greatly upgrades airtightness and watertightness against heavy storm backflow, with ultra-sleek facade without protruding parts.

❿Linkage Multi-Point Locking Hardware Kit

Custom alloy linkage hardware realizes three-point synchronous locking to eliminate gap warping of single-point locks. Double electrophoresis anti-rust treatment adapts to humid balcony and courtyard surroundings. Ergonomic recessed handles deliver effortless sliding and stable locking without loosening after tens of thousands of frequent operations.
