Australian Sliding Door

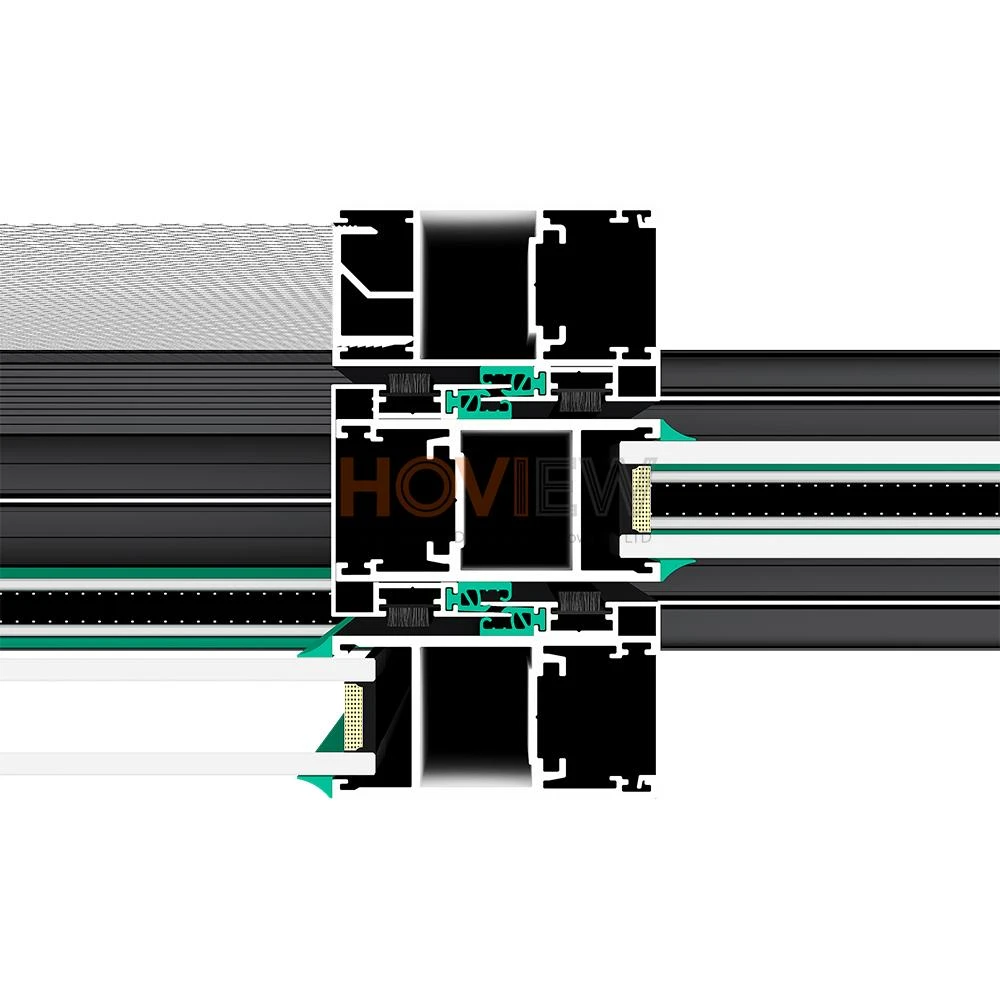

❶High-Precision Extruded Profiles

One-step hot extrusion from national standard 6063-T6 tempered aluminum blank with fixed 8.0mm benchmark wall thickness. Interlaced reinforcing ribs on cross-section boost torsion and bending rigidity without split thermal break cavities. Frames and sashes use matched die profiles with tightly controlled batch machining tolerance. Outdoor weather-resistant polyester powder coating resists coastal salt fog and UV fading to fit Australia's high-salt seaside environment. The frame avoids distortion and joint misalignment under large sash sizes, and multi-panel combined assembly is available per unit.

❷Side-Mounted Tool-Free Embedded Screen Craft

The screen unit is installed horizontally into sash side grooves instead of the common lift-off structure. 316 stainless steel cut-resistant high-transparency mesh meets Australian insect prevention standards without blocking indoor daylight. Elastic side latches enable partial extraction for rinsing and resetting during cleaning. Magnetic strips seal gaps to stop insects without edge separation during sliding, and the screen never occupies the sash moving stroke.

❸5mm+27A+5mm Extra-Wide Cavity Tempered Insulated Glass

Standard 5mm+27A extra-wide air cavity double tempered glass certified under mandatory Australian AS/NZS 2208 safety glass standard. Dry clean air inside the cavity weakens outdoor noise transmission and cross-temperature convection. Single-side offline Low-E coating is optional to block infrared heat ingress in summer and retain indoor heating in winter. Edges are ground and wrapped with flexible bumpers to prevent chipping during handling. Shattered glass forms blunt granular fragments to satisfy Australia's residential safety codes.

❹Single-Joint Closed-Loop CNC Bent Hollow Aluminum Spacer

Instead of segmented spliced spacers, CNC one-time bending forms a full closed loop with only one double butyl-sealed joint to block moisture infiltration. Thickened spacer wall adapts to thermal expansion of 27A wide cavity glass to prevent glue separation. Sufficient inner cavity space holds molecular sieve desiccant to fundamentally reduce condensation and fogging inside insulated glass, suiting Australia's rainy weather and large day-night temperature difference.

❺Multi-Layer Composite Track Sealing Wool Piles

Double staggered film-reinforced dense wool piles are installed at frame-sash overlapping track positions. PET film reinforcement on pile roots prevents lodging and fiber shedding after long-term sliding. Multi-layer interleaved layout fills multi-level track gaps, buffers metal friction noise and blocks coastal dust and sea sand ingress. Weather-modified PP material resists UV hardening and shrinkage under Australian intense sunlight to retain sealing elasticity with low maintenance frequency.

❻Sunken Integrated Cast Load-Bearing Silent Sliding Track

Sunken embedded track installation eliminates protruding steps to comply with Australian barrier-free access standards and avoid tripping hazards. One-piece cast track with arched bottom ribs evenly bears the total weight of combined multi-panel sashes without long-term sagging. Double wear-resistant shock-absorbing nylon pulleys deliver ultra-light sliding force with built-in left-right limit buckles to prevent derailment and tipping under strong coastal wind, eliminating harsh metal friction noise during operation.

❼45° Miter Glue Injection & Bracket Dual Reinforcement Joint Craft

All 45° miter joints are mechanically locked with pre-embedded stainless steel brackets first, then structural glue is pressure-injected into all hollow profile cavities. Cured adhesive merges separate profile segments into a single rigid unit. Tensile and tear resistance of corners is greatly enhanced against repeated sliding force to prevent gap opening and water seepage over years. Fully sealed splicing seams eliminate exposed leakage paths to resist rain backflow during Australian heavy downpours.

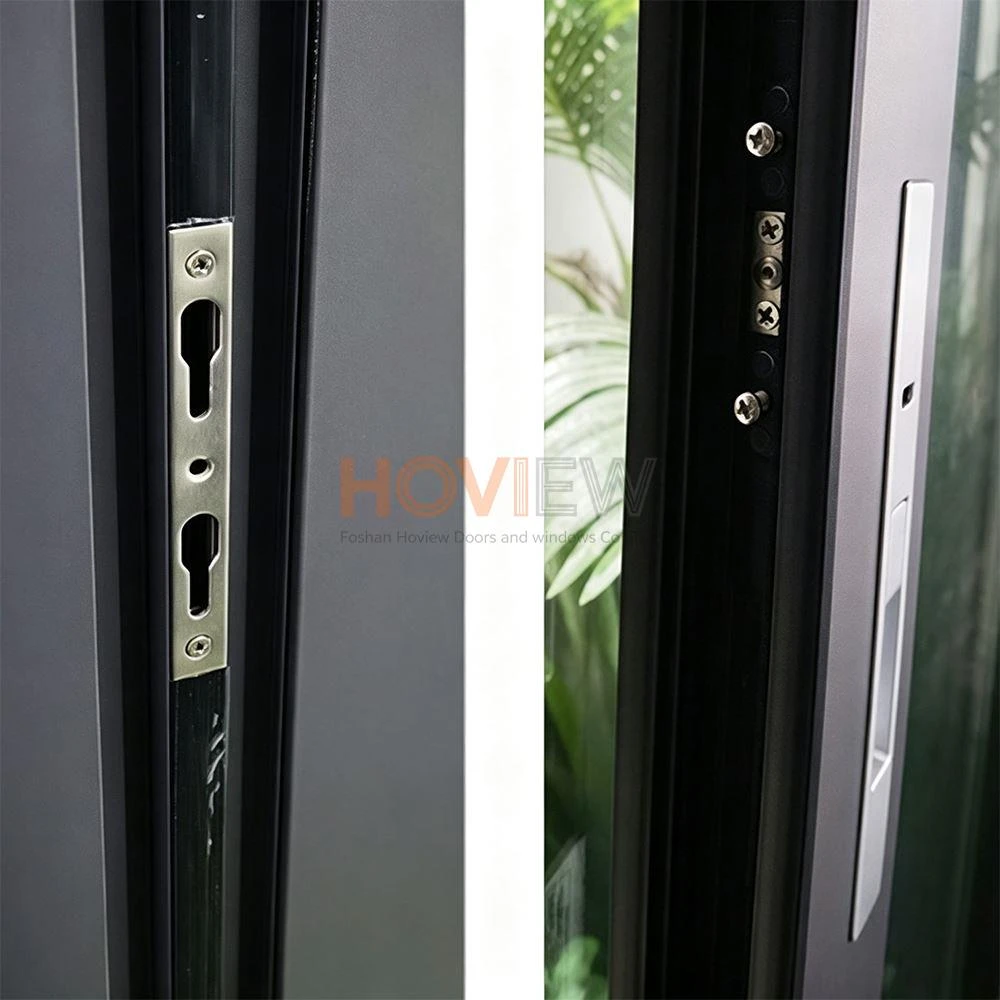

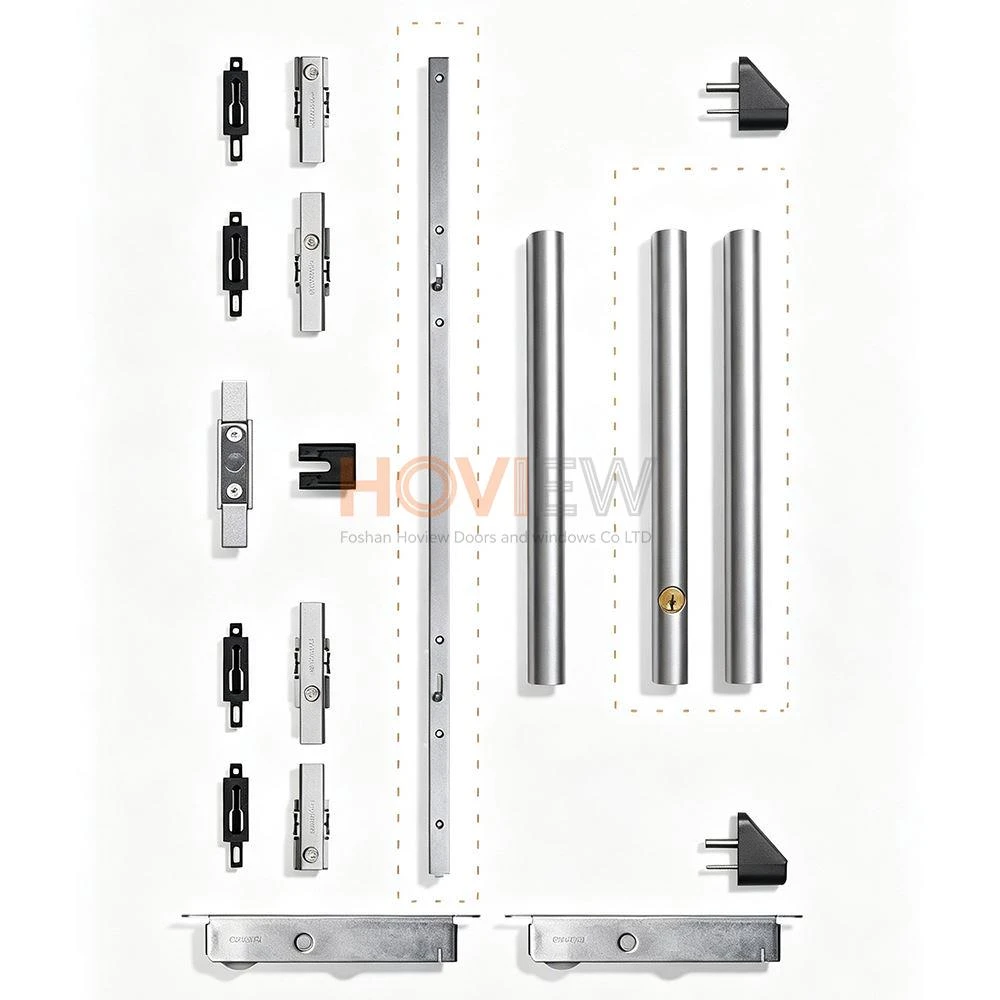

❽Australian Standard Custom Electrophoresis Anti-Rust Sliding Hardware Kit

Hardware is custom-molded per Australian exterior door hardware codes. Zinc alloy base with multi-layer electrophoresis passivation anti-rust treatment avoids oxidation and jamming in high-salt humid coastal areas. Side linkage multi-point synchronous locking presses the sash evenly to eliminate air and water leakage gaps. Recessed hidden handles preserve minimalist facade appearance. Transmission components stay tightly engaged after tens of thousands of cycles, and wearing parts like pulleys and lock points are detachable for separate replacement to cut overall maintenance cost.
