Sliding Panoramic Door

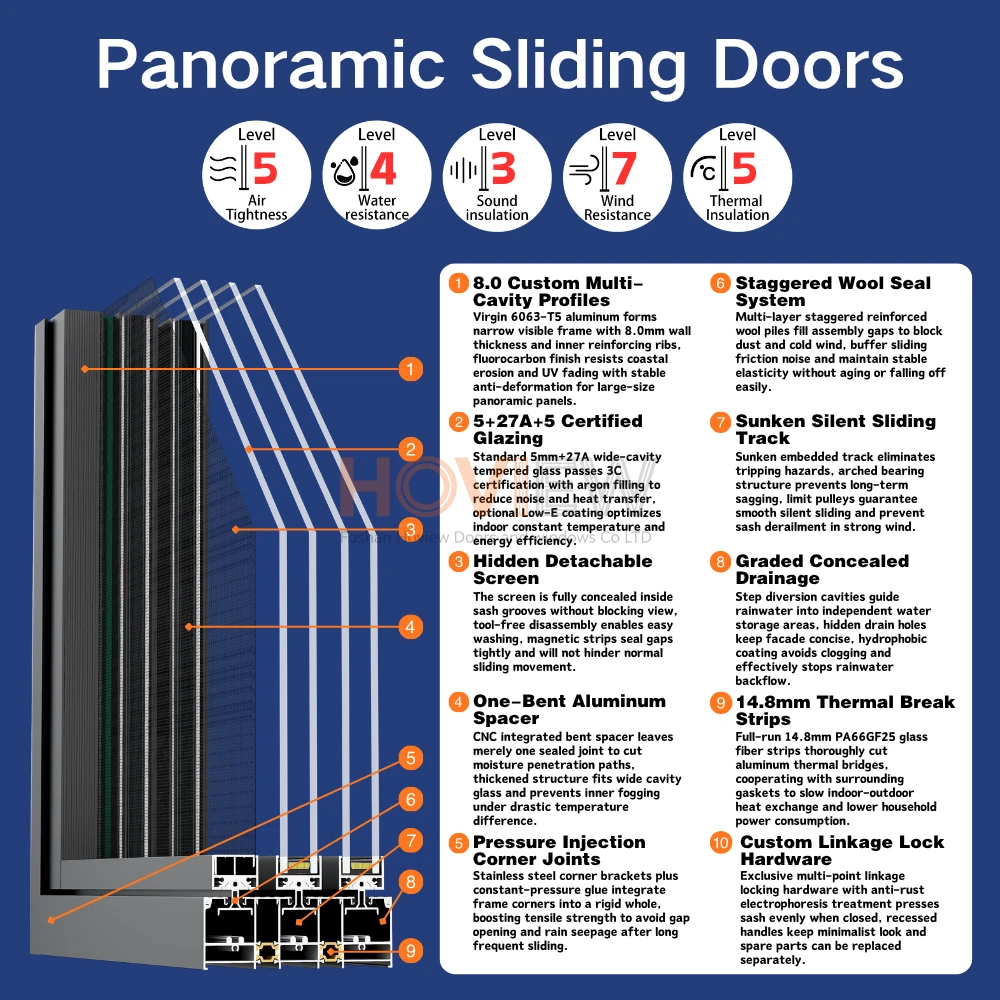

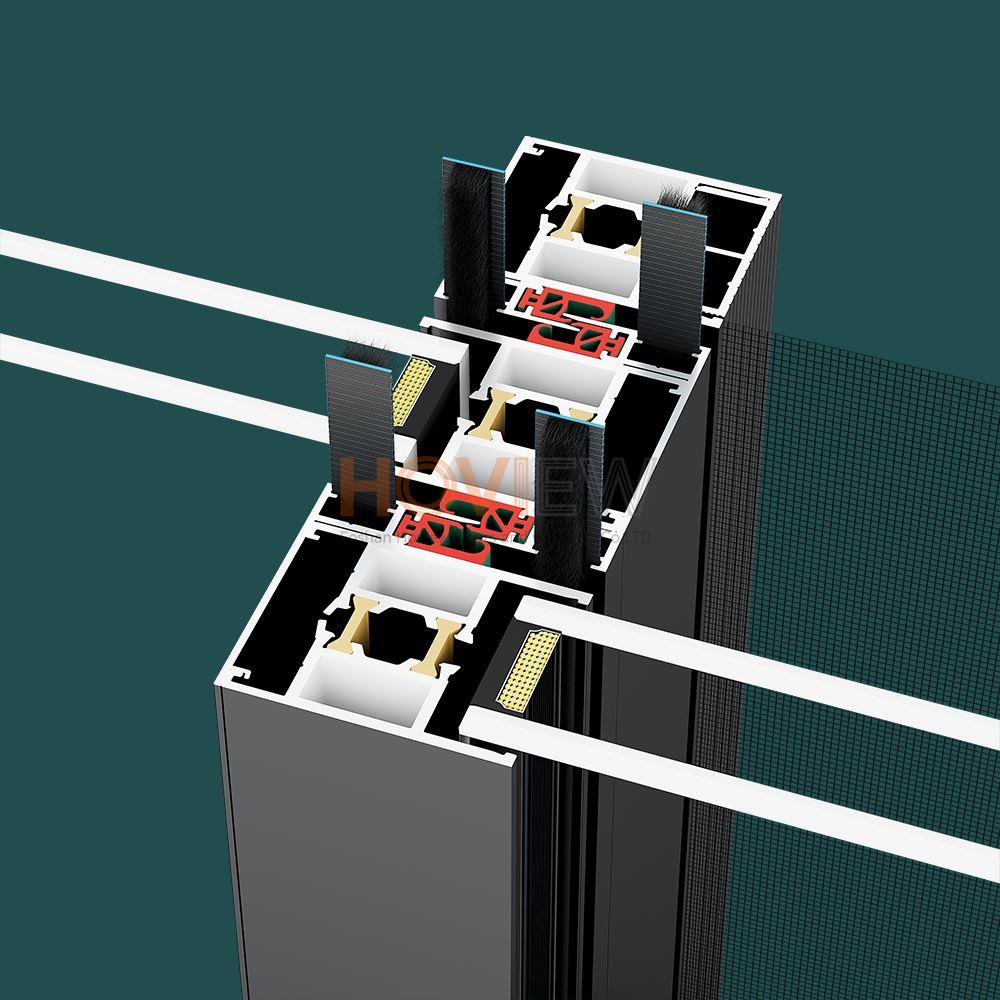

❶High-Precision Custom Cavity Profiles

Extruded from virgin 6063-T5 aluminum ingots with exclusive multi-cavity cross-section for minimized visible frame width. Built-in transverse ribs disperse heavy sash load, while weather-resistant fluorocarbon coating resists coastal corrosion and UV fading. Calibrated assembly tolerance ensures even seams for multi-panel combination and stable anti-twist performance under high-rise wind pressure.

❷Large-Air-Cavity Tempered Insulated Glass

Standard 5mm+27A extra-wide cavity double tempered glass with mandatory 3C certification and argon gas filling to weaken noise and heat exchange. Optional offline Low-E coating blocks solar heat in summer and retains indoor warmth in winter. Flexible edge protectors prevent edge chipping during handling, and broken glass forms blunt particles to avoid personal injury.

❸Concealed Detachable Screen Craft

The screen is fully hidden inside sash inner grooves without occupying front viewing space. High-density 316 stainless steel mesh blocks insects while preserving daylight. Tool-free side buckles allow one-hand lifting for disassembly and cleaning, with magnetic side strips sealing gaps tightly without interfering with sliding movement.

❹CNC Seamless Full-Bent Hollow Aluminum Spacer

CNC one-piece bent aluminum spacer forms a closed loop with only one butyl-sealed joint to block moisture entry. Thickened wall adapts to thermal expansion of 27A wide cavity glass to prevent glue separation. Sufficient inner space for desiccant fundamentally lowers fogging and condensation risks inside insulated glass.

❺Constant-Pressure Glue Injection Integrated Corner Joint

45° miter joints are mechanically locked with stainless steel brackets before constant-pressure structural glue injection filling all hollow cavities. After curing, separate profile segments merge into one rigid unit. It greatly improves tensile resistance against frequent sliding force, eliminates corner gap leakage and fully seals all splicing seams.

❻Multi-Staggered Dense Elastic Wool Pile Seals

Multi-group staggered dense wool piles with film-reinforced roots fill multi-level assembly gaps and reduce metal friction noise during sliding. It blocks outdoor dust and cold air effectively, with strong anti-aging and low-temperature resistance to maintain elasticity and sealing effect in frigid northern climates.

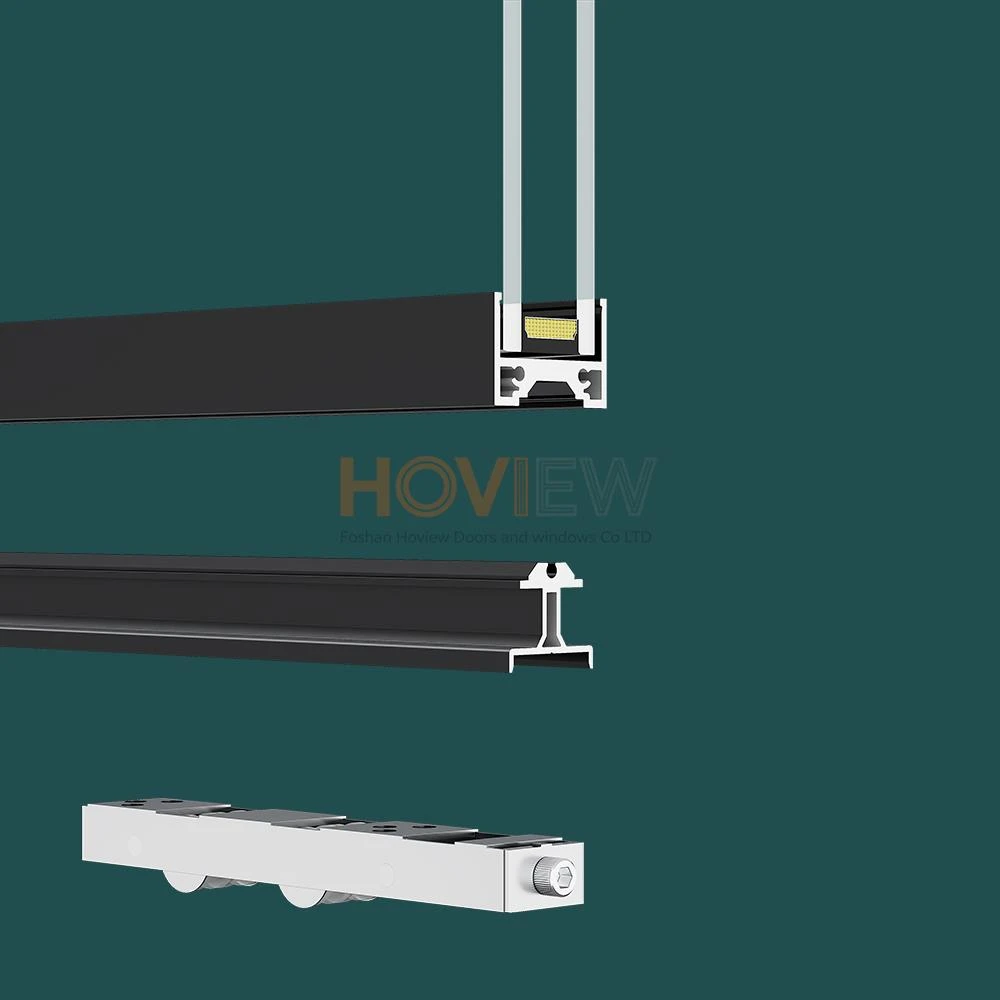

❼Sunken Widened Load-Bearing Silent Sliding Track

Sunken embedded track eliminates protruding tripping edges for safer passage. Integrated cast widened track with arched bearing ribs evenly distributes heavy sash weight against long-term sagging. Double wear-resistant shock-absorbing pulleys deliver effortless quiet sliding with anti-derail limit latches to prevent sash tipping under strong wind.

❽Extra-Wide PA66GF25 Thermal Break Strips

Stepwise diversion cavities guide infiltrated rainwater into independent water collection bins to avoid hardware corrosion. Hidden outer drain holes with dustproof caps keep facade neat, and hydrophobic coating prevents sludge clogging for rapid drainage and effective anti-backflow performance during heavy rainstorms.

❾14.8mm Full-Length PA66GF25 Thermal Break Strips

14.8mm full-frame PA66GF25 strips mixed with 25% alkali-free glass fiber resist high-temperature creep and low-temperature cracking. It thoroughly cuts off thermal bridge between inner and outer aluminum frames, forming a composite heat insulation system with perimeter gaskets to reduce HVAC energy loss and stabilize indoor temperature year-round.

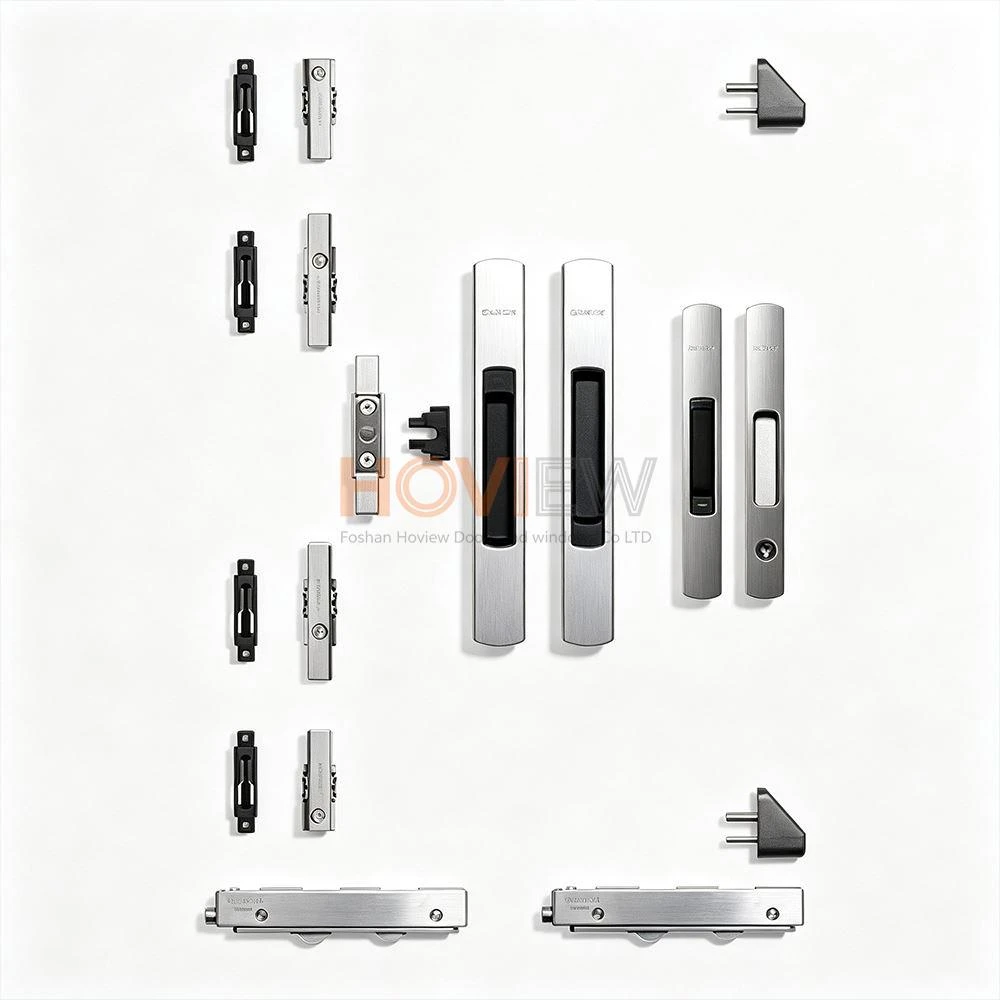

❿Custom Linkage Multi-Point Locking Hardware

Custom-molded alloy hardware with multi-layer electrophoretic anti-rust treatment suits humid outdoor balcony and courtyard use. Side linkage multi-point locks press sash evenly to eliminate air and water leakage gaps. Recessed handles preserve minimalist facade, and detachable wearing parts reduce maintenance cost after long-term frequent operation.
