Flush Aluminium Window

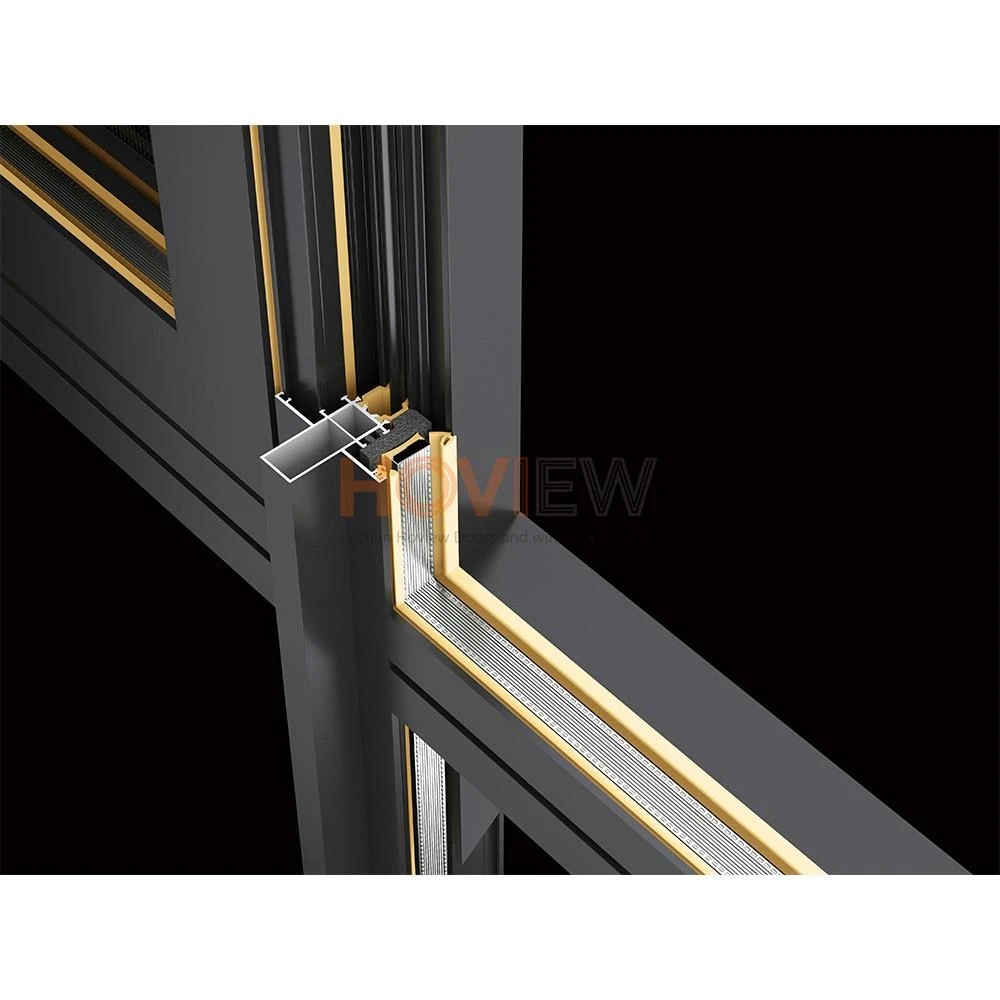

❶Standard-Compliant Reinforced Aluminum Profiles

This outward-opening dedicated profile adopts a 2.0mm wall thickness that fully meets updated national industry standards, forged from pure 6063-T5 virgin aluminum ingots. The material owns ultra-high structural hardness, excellent tensile toughness and all-weather anti-corrosion capability. It can withstand long-term outdoor wind pressure without bending or permanent deformation, carrying heavy insulated glass panels steadily, and maintains stable safety performance for decades of residential and commercial building application.

❷Multi-Layer Inert Gas Insulated Tempered Glazing

The whole window is pre-equipped with standard 5mm+24A+5mm hollow insulated glass, which has passed national mandatory 3C safety certification. The hollow interlayer is filled with inert shielding gas to form a dual barrier against heat transfer and external noise interference. Tempered glass panel brings outstanding impact resistance, effectively isolating indoor living areas from outdoor high/low temperature and traffic noise, creating a quiet, safe private interior space.

❸Full Vertical Equal-Temperature Thermal Break Architecture

It matches PA66GF25 reinforced polyamide thermal break strips and full-perimeter wrapped EPDM foamed sealing gaskets, forming a complete vertical equal-temperature isolation frame structure. This design completely cuts off cold bridge heat conduction channels between indoor and outdoor sides, drastically reduces air conditioning and heating energy loss all year round, and locks a constant mild temperature inside the room to boost living comfort.

❹Full-Perimeter Vapor-Blocking Triple Sealing Circuit

Independent moisture isolation sealing collars are mounted on every operable outward sash and fixed glass perimeter, forming a closed-loop three-layer airtight barrier wrapping the entire window. It delivers multi-stage interception against heavy rain penetration, cross-air convection, outdoor hot/cold airflow, suspended dust and window surface condensation, sustaining stable airtight and watertight performance under all seasonal weather conditions.

❺Dual-Side Coplanar Hidden-Seal Minimalist Frame Aesthetic

Adopts full internal-external coplanar sash and frame layout with all sealing components concealed inside the profile cavity. The flat wall-mounted surface creates a seamless minimalist architectural look, completely avoiding exposed rubber strips that are prone to UV aging, sewage residue and dust accumulation. It balances high-end modern visual aesthetics and long-term sealing durability perfectly.

❻Hidden Enlarged Channel Gravity Drainage Framework

Built-in fully concealed internal drainage runners with widened internal drain outlets embedded in the profile cavity. The invisible layout keeps the outer facade neat and unified without protruding holes. Sloped gravity flow channels eliminate rainwater stagnation inside frame cavities entirely, prevent reverse water backflow during heavy downpours, and greatly accelerate rainwater discharge speed and capacity to cut hidden leakage risks.

❼Full-Cavity Injection Reinforced Corner Connection Craft

Every frame splicing corner adopts full glue-injection corner bracket assembly technology. After the filling adhesive cures, it fully fills all hollow cavities at frame joints, integrating separate profile segments into an integrated rigid whole. This process significantly lifts overall structural rigidity and load-bearing limit, fully seals micro gaps at splicing points, and fundamentally blocks rainwater seepage from window corners.

❽American Original AmeriMax Complete Hardware Suite

Comes with a full set of imported AmeriMax outward-opening exclusive hardware accessories from the US, built with bottom sash buffer blocks to offset impact stress during window closing. The whole hardware set undergoes multi-layer anti-rust and anti-oxidation surface treatment for uniform consistent color finish. It delivers silky silent opening and closing strokes, resisting long-term mechanical wear and UV aging to achieve ultra-long service lifespan.
