Australian Standard Window

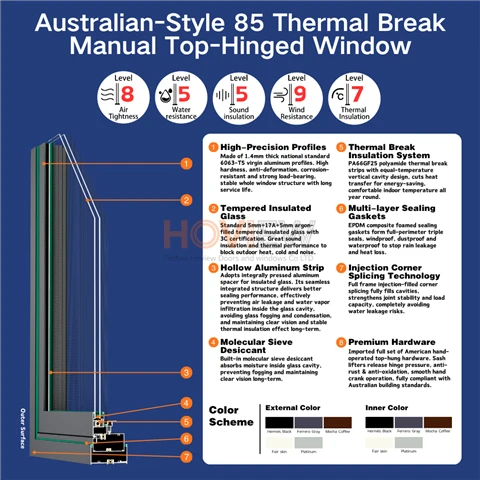

❶Thin-Wall Custom Aussie-Grade Extruded Profiles

Specially engineered for Australian construction codes, this top-hung window adopts slim 1.4mm nominal wall thickness 6063-T5 primary aluminum extrusion. The alloy delivers rigid structural hardness, powerful anti-distortion stability and all-climate anti-corrosion performance to withstand harsh coastal salt air and strong crosswinds common in Australian suburbs. Despite its thin-wall lightweight build, the profile carries heavy insulated glass loads reliably, extending the whole window's working lifespan without sagging or frame warping.

❷Argon-Charged Low-Conductivity Tempered Insulated Glazing

Factory fitted with 5mm+17A+5mm hollow insulated glass assemblies holding inert argon gas inside the sealed air cavity, fully certified under global 3C safety impact standards. The noble gas fill drastically slows conductive heat transfer between exterior and interior, delivers remarkable passive noise reduction against traffic and wildlife sound, and stabilizes indoor temperature swings to cut down residential heating and cooling energy expenditure year-round.

❸Integrally Pressed Hollow Aluminum Spacer Bar

This model replaces generic plastic warm-edge spacers with seamless monolithic pressed hollow aluminum separation strips for the glass unit. The one-piece seamless molding eliminates tiny assembly gaps that become water vapor entry points over time. It locks out moisture seepage into the glass cavity, permanently stops internal fogging, frosting or water condensation on the glass interior surfaces, preserving crystal-clear window visibility for decades.

❹Built-In Molecular Sieve Desiccant Core

High-performance imported molecular sieve desiccant is pre-installed within the glass spacer frame. The ultra-fine porous structure continuously absorbs residual moisture trapped inside the insulated glass air pocket during manufacturing and daily temperature shifts. It eliminates internal fogging risk under extreme Australian summer heat and winter cold, maintaining consistent unobstructed glass clarity across all seasons.

❺Vertical Equal-Temperature Polyamide Thermal Break Framework

Multi-section PA66GF25 reinforced polyamide thermal barrier strips are embedded vertically through the full frame height, paired with segmented cavity layout design. This continuous temperature isolation partition fully severs thermal bridge conduction paths between the outside hot/cold aluminum frame and interior living space, minimizing cross-frame heat exchange to slash household power consumption and maintain steady, mild indoor ambient temperatures all year long.

❻Full-Perimeter Multi-Layer EPDM Foam Sealing Circuit

Custom extruded EPDM elastic foam gaskets wrap the entire sash and frame junction to form a full-circumference multi-stage airtight barrier. The layered elastic seal stack blocks heavy coastal rain penetration, harsh outdoor wind gusts, airborne dust, and cross-air convection that causes indoor heat loss. It maintains stable waterproof, windproof and dust-blocking performance without hardening or shrinking under long-term UV exposure.

❼Full-Cavity Injection Molding Corner Fusion Craft

Every frame miter joint undergoes complete adhesive injection splicing treatment. The liquid structural sealant fully fills every hollow void within the profile corners before curing, merging separate aluminum segments into one unified monolithic rigid frame. This fusion process massively boosts joint tensile strength and overall load-bearing capacity, fully sealing micro gaps at splicing points to eliminate hidden rainwater seepage risks at window corners entirely.

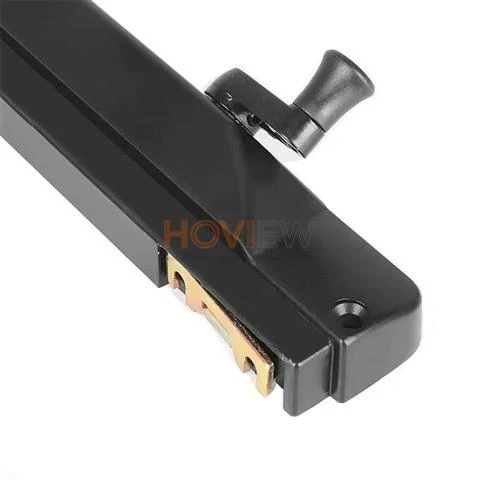

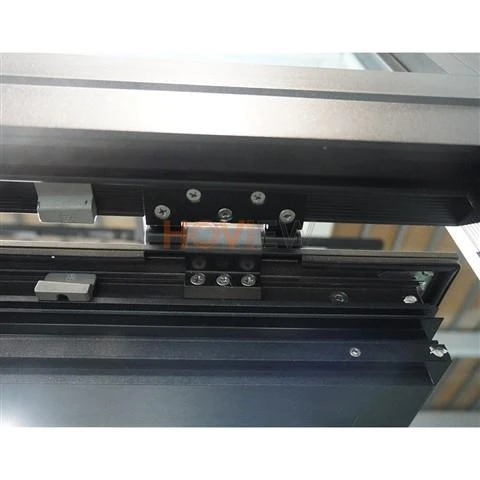

❽Australian Standard Certified American Origin Top-Hung Hardware Kit

Supplied with a complete set of American-manufactured top-hung dedicated hardware that meets official Australian building compliance codes. Built-in sash lifting relief buffers offset mechanical stress when closing the overhead hinged sash, reducing wear on pivot joints. All metal components receive multi-layer anti-rust and anti-oxidation surface treatment, delivering smooth crank-operated opening and closing cycles with consistent long-term operational stability.
