Residential Casement Window

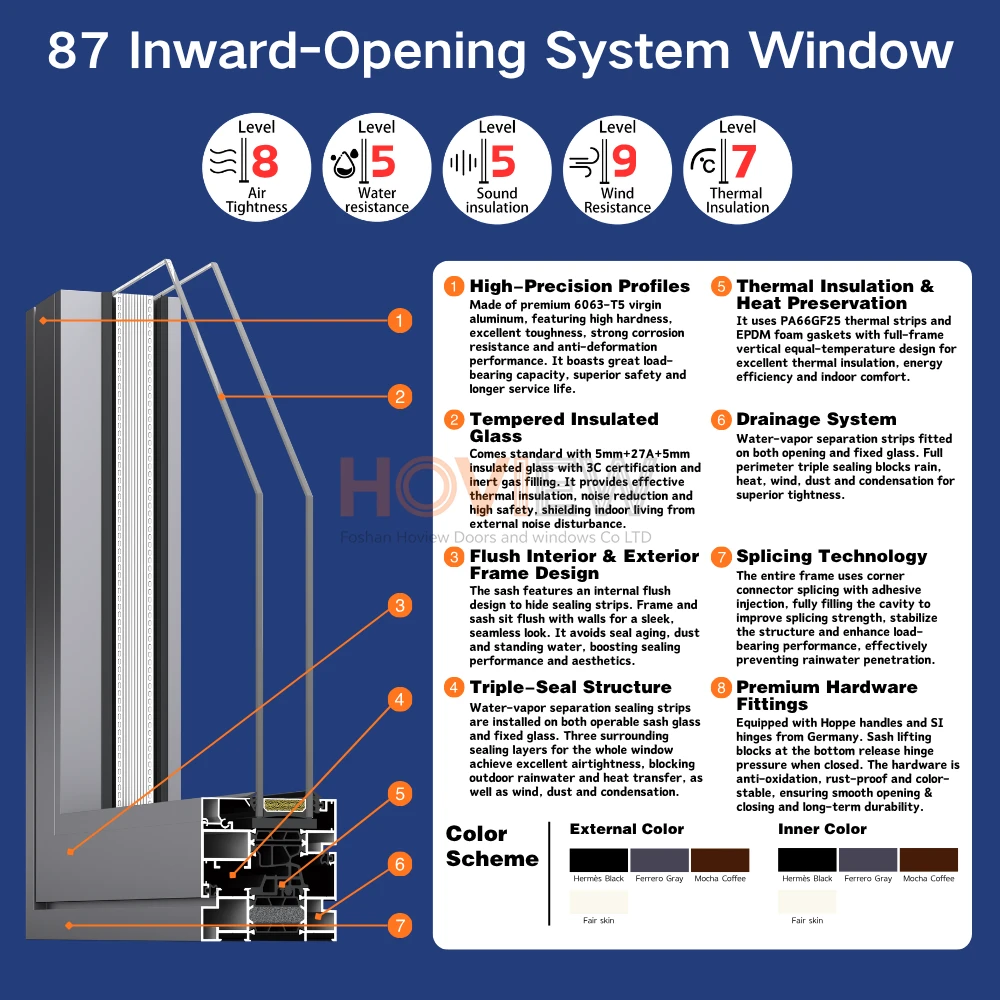

❶Rigid High-Grade Extruded Profiles

Fabricated from genuine 6063-T5 primary aluminum ingots, the profile boasts rigid hardness, remarkable anti-rust and anti-oxidation properties, and resists bending or deforming under long-term load. It delivers robust weight-bearing performance, structural stability, extended service lifespan and reliable long-term safety.

❷Multi-Cavity Insulated Tempered Glazing

Default configuration is 5mm+27A+5mm certified 3C insulated tempered glass filled with inert shielding gas inside the air cavity. It creates an effective thermal barrier to cut indoor-outdoor heat exchange, dampens external ambient noise, and elevates overall impact safety for quieter, disturbance-free interior living.

❸Symmetric Internal & External Flat Frame Profile

Adopts full inner-outer coplanar sash & frame design, eliminating uneven seams between window sash and frame. This integrated seamless structure avoids hidden gaps prone to air leakage, reinforces overall sealing tightness against rain, wind and dust infiltration, while presenting minimalist, streamlined exterior aesthetics.

❹Independent Triple Isolation Sealing Layout

Separate vapor-isolation sealing strips are individually fitted for operable sash and fixed panes. Three surrounding closed-loop sealing layers work in tandem to maximize air tightness, actively repel outdoor rain penetration, heat conduction, wind intrusion, dust buildup and indoor condensation issues year-round.

❺Continuous Thermal Break Energy Conservation Construction

Built with PA66GF25 reinforced heat insulation strips paired with full-frame surrounding EPDM foam gaskets, forming a complete equal-temperature interruption pathway. It drastically slows heat transfer between interior and exterior, optimizes energy consumption efficiency, and stabilizes indoor temperature for enhanced living comfort.

❻Targeted Anti-Leak Drainage Configuration

Custom water-vapor isolation sealing collars wrap both movable sash and fixed glass perimeter. The full-perimeter triple barrier setup comprehensively blocks rainwater, hot air, dust and moisture condensation ingress, upgrading whole-window watertightness and airtightness to a higher standard.

❼Glue-Infusion Integrated Corner Joint Craft

All frame corners utilize adhesive injection corner connectors, which fully fill internal cavity gaps after curing. This process boosts corner tensile strength, stabilizes whole-window structural rigidity and weight resistance, and fundamentally stops rainwater seepage at splicing joints for lasting waterproof reliability.

❽Imported Brand Hardware Assembly Package

Outfitted with Hoppe operating handles and German-origin SI hinge assemblies; built-in bottom sash pressure relief buffers mitigate impact stress during closing strokes. The hardware features oxidation resistance, rust-proof stability, consistent smooth opening/closing action and outstanding long-cycle service durability.
