Name: China Customized Thermal Break Casement Window Manufacturers Suppliers - Wholesale Service - Hoview
Brand: Hoview
SKU: 306819926

Thermal Break Casement Window

2-Internal Structure of the 97 Inward-Opening System Window

3-Structure of the 97 Series Inward-Opening Windows(1)

4-Internal Structure of the 97 Series Inward-Opening Windows

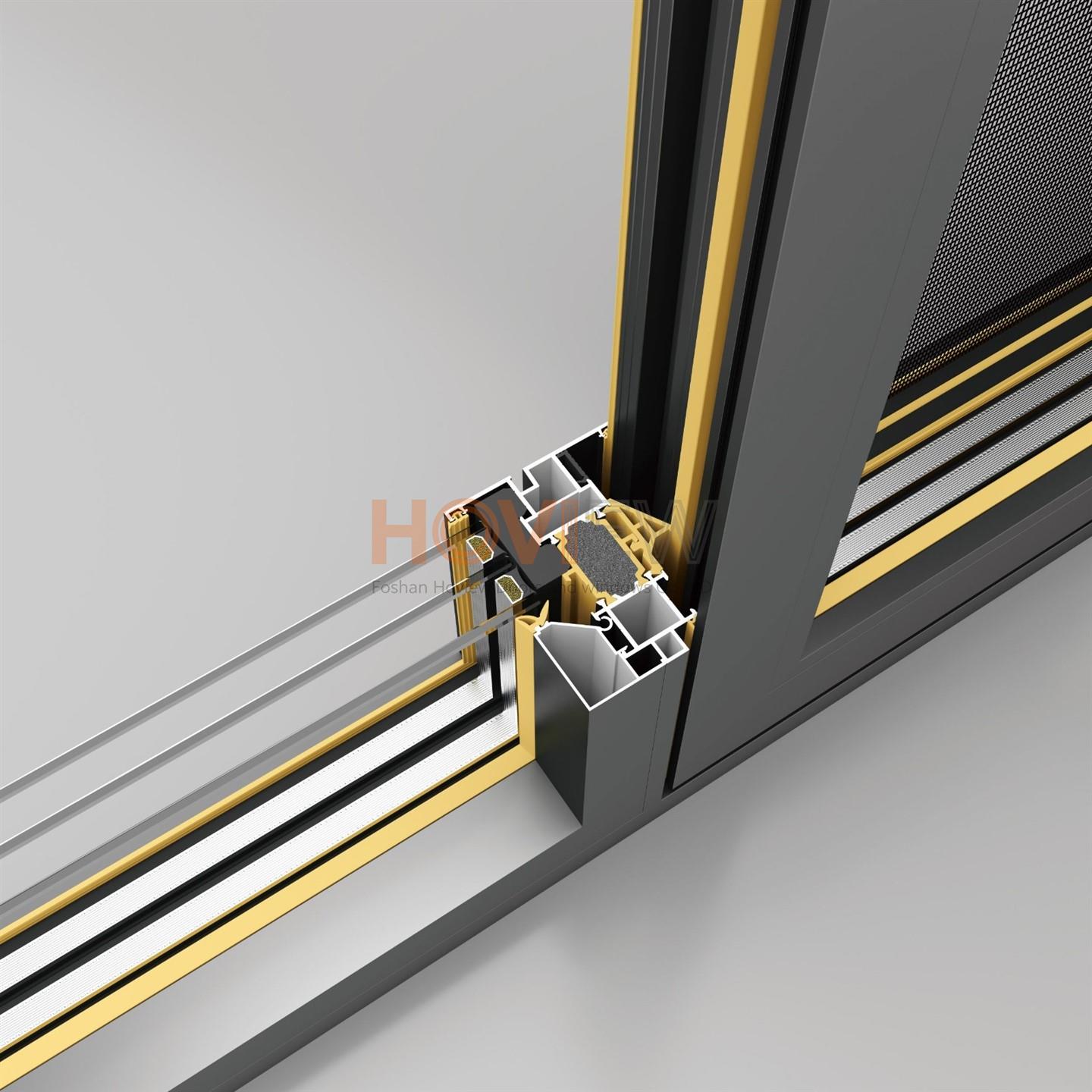

5-Internal Aluminum Structure of the 97 Series Inward-Opening Windows(1)

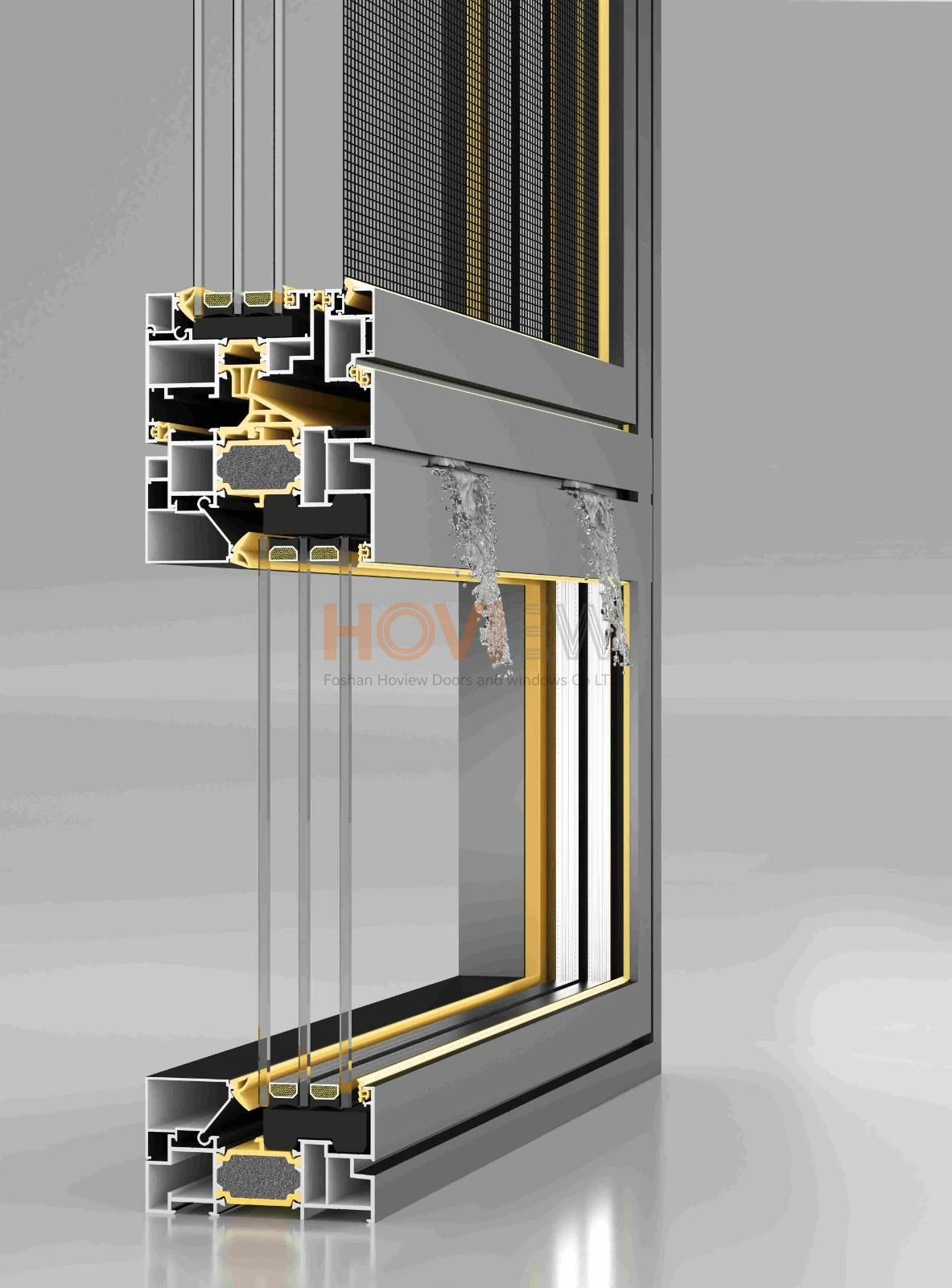

6-Internal Aluminum Structure of the 97 Series Inward-Opening Windows(1)

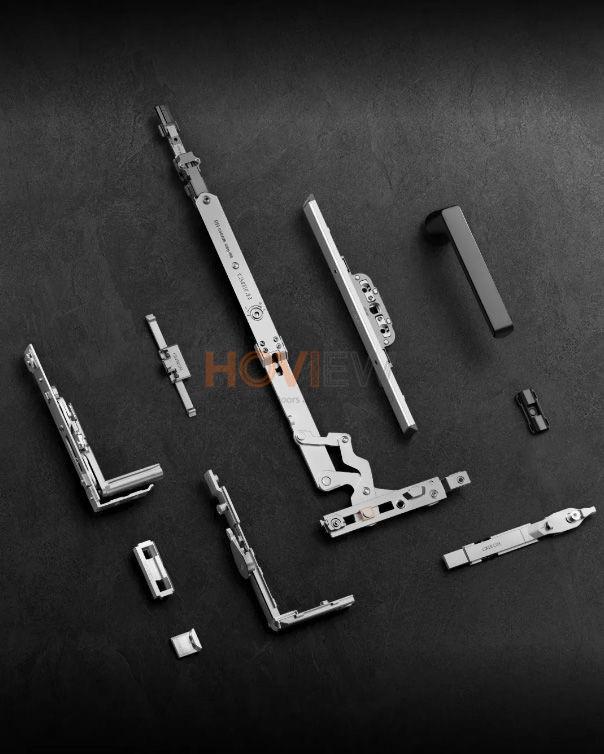

7-97 Series Inward-Opening Window Hardware

Product Introduction:

The 97 reinforced inward window is developed for coastal and extreme temperature areas. Thickened integrated mullion improves glass load capacity, while six-layer sealing lifts airtightness, resisting salt fog and strong wind, ideal for upgraded housing and riverside coastal communities.

Core Product Features
1、Deepened load-bearing cavity: thick aluminium wall strengthens thermal space, avoiding frame distortion under coastal wind.
2、Anti-offset heightened lock hardware: multi high lock points clamp sash evenly; outward push causes linkage derailment.
3、Salt-fog resistant thick mesh: rigid net resists coastal corrosion and meets seaside anti-pry standards.
4、Six-loop high-pressure waterproof structure: full-frame rubber seals block wind noise and stabilize indoor temperature year-round.

Send Inquiry

Description

Technical Parameters

Foshan Hoview Windows and Doors Co., Ltd. is one of the leading manufacturers and suppliers of thermal break casement window in China, also accepts customized orders. If you're going to buy durable thermal break casement window made in China, welcome to get quotation from our factory. For price consultation, contact us.

Product Details

Click on the corresponding title to expand the details.

Structure Overview
Product Specifications
Aluminum Colors
Choosing Glass

4-97

❶High-Precision Profiles

Made of genuine 6063-T5 raw aluminum, featuring high hardness and great toughness. It resists corrosion and deformation, with superb load-bearing capacity to ensure safety and long service life.

❷Tempered Triple Insulated Glass

Standard triple-pane double-cavity insulated glass (5mm+15A+5mm+18A+5mm) with 3C certification and inert gas filling. It achieves great heat insulation, noise reduction and high safety performance.

❸Flush Interior & Exterior Frame Design

Coplanar sash with hidden sealing strips, flat and neat when matched with wall surfaces. It avoids water and dust accumulation, strengthening sealing performance and long-term durability.

❹Triple-Seal Barrier Structure

Both movable sash and fixed glass adopt vapor-isolation strips to form full-perimeter triple seals. It perfectly blocks outside wind, heat, dust and indoor condensation.

❺Thermal Break Constant-Temp Structure

PA66GF25 thermal strips plus full-frame EPDM foam seals, matched with multi-cavity insulated glass. It realizes equal-temperature isolation, saves energy and improves indoor comfort.

❻Optimized Concealed Drainage System

Hidden drainage design with enlarged internal holes. It maintains clean window appearance, prevents rainwater retention and backflow, and speeds up drainage efficiency.

❼Reinforced Injection Corner Joint Tech

Injection glue fills all frame cavities to boost integral strength and load capacity, effectively stopping rain leakage at frame splicing joints.

❽Premium Buffered Hardware Hinges

Fitted with German Hoppe handles and SI hinges. Sash bottom buffers reduce closing impact stress. Anti-rust, anti-oxidation, smooth operation and ultra-durable.
